AquaVibe Pro 5-Channel Class D 1200-Watt Marine Amplifier IP67 Rated

Command the Elements: Introducing the Aquavibe Pro Series

Whether you’re cutting through heavy chops, kicking up dust on the trail, or cruising the open highway, your soundtrack shouldn’t have to fight for survival. Magnadyne is proud to introduce the Aquavibe Pro Series—a lineup of high-performance Class-D amplifiers engineered for those who refuse to compromise on power, regardless of the environment.

Built to Withstand, Designed to Impress

Every amplifier in the Aquavibe Pro series is IP67-rated, meaning they are completely dust-tight and can withstand temporary immersion in water. Wrapped in a sleek, brushed-billet enclosure, these amps don't just survive the elements; they look sophisticated in any custom install. Thanks to their compact footprint and efficient Class-D architecture, they can be mounted in tight storage compartments, under seats, or inside fairings without overheating.

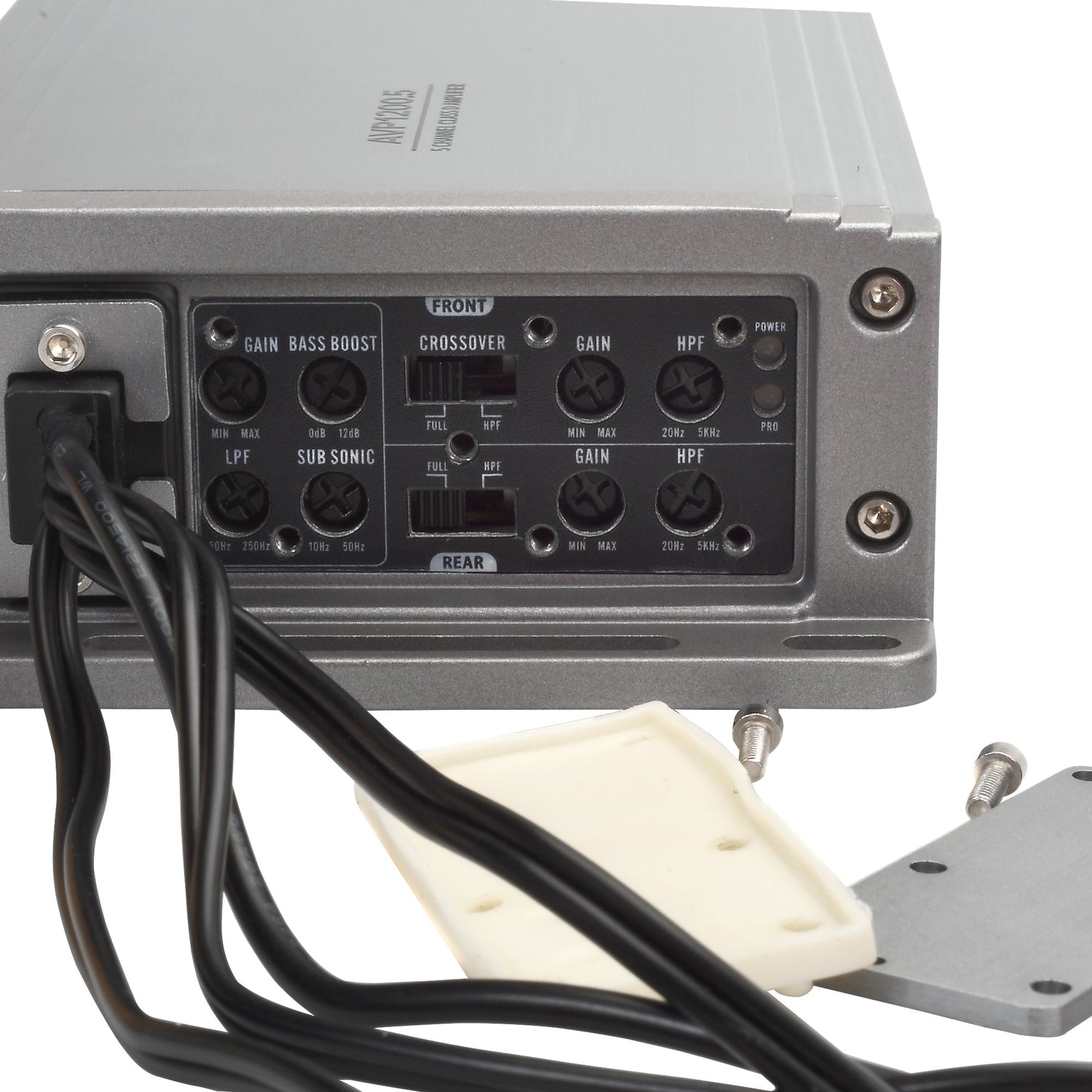

The AVP1200.5 is a powerhouse 5-channel amplifier that delivers an impressive 1200 watts of total RMS power in a single compact chassis. This versatile unit can drive your entire audio system, powering four to eight speakers plus a subwoofer simultaneously. With 150W x 4 channels at 2Ω for your main speakers and up to 600W x 1 channel at 1Ω for your subwoofer, it offers exceptional sound control. The amplifier features comprehensive tuning options including variable crossovers, gain controls, and a remote bass knob for on-the-fly adjustments. Its slim design, measuring just 12.6 x 4.4 x 1.9 inches, allows for flexible mounting options in tight spaces. The IP67-rated construction ensures reliable performance in challenging environments, while built-in protection circuits guard against short circuits, clipping, and thermal overload. Advanced features include subsonic filters, front/rear crossovers, and high-pass/low-pass filtering capabilities, making it an ideal solution for marine, RV, and off-road vehicle audio systems.

KEY FEATURES:

• 1200W Total RMS: A massive power reservoir split between 600W for high-frequency speakers and 600W for bass.
• Single-Chassis Solution: Power four to eight speakers and a sub from one compact unit to save space and simplify wiring.
• Dedicated Bass Channel: Features a specialized 600W output designed specifically for subwoofers.

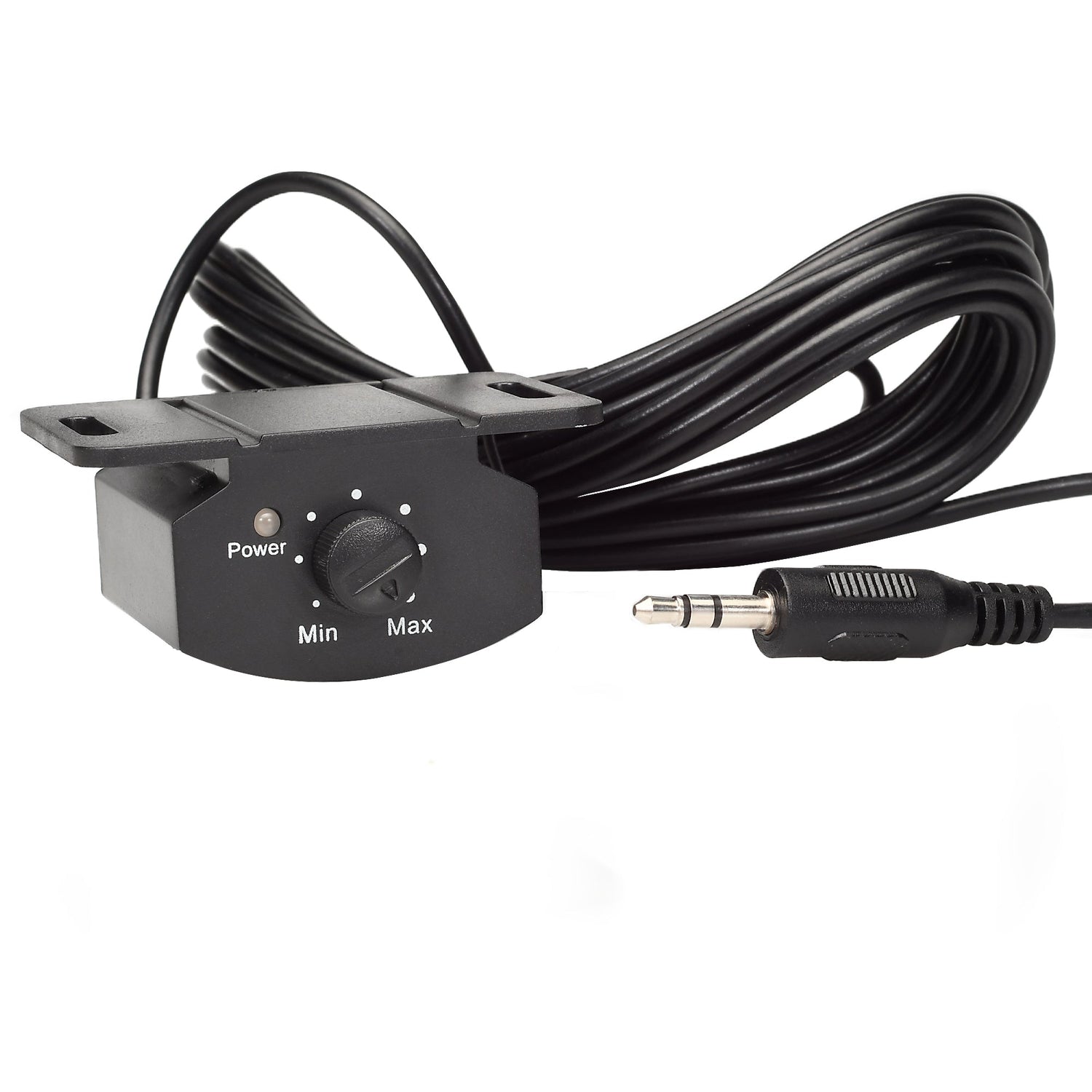

• Dynamic Bass Knob: Includes a remote controller to balance your sub levels against your speakers on the fly.
• Small Footprint: Despite its 5-channel output, the slim design allows for mounting in RV compartments or under boat seats.
• Comprehensive Protection: Advanced circuitry protects against short circuits, clipping, and thermal overloads.

FULL SPECIFICATIONS AVP1200.5

Power output @ 4Ω (watts RMS) 100W X 4 CH + 260W X 1 CH

Power output @ 2Ω (watts RMS) 150W X 4 CH + 450W X 1 CH

Power output @ 4Ω BTL (watts RMS) 300W X 2 CH (CH1/2 + CH3/4)

Power output @ 1Ω (watts RMS) 600W X 1 CH (CH5)

Total Harmonic Distortion (THD) ≤0.2%

(± 1 dB) CH1~CH4: 20Hz~20kHz Frequency Response

CH5: 10Hz~250Hz

>90dB Signal to Noise Ratio

0.2V~6V Input Sensitivity

120A Recommended Fuse Size

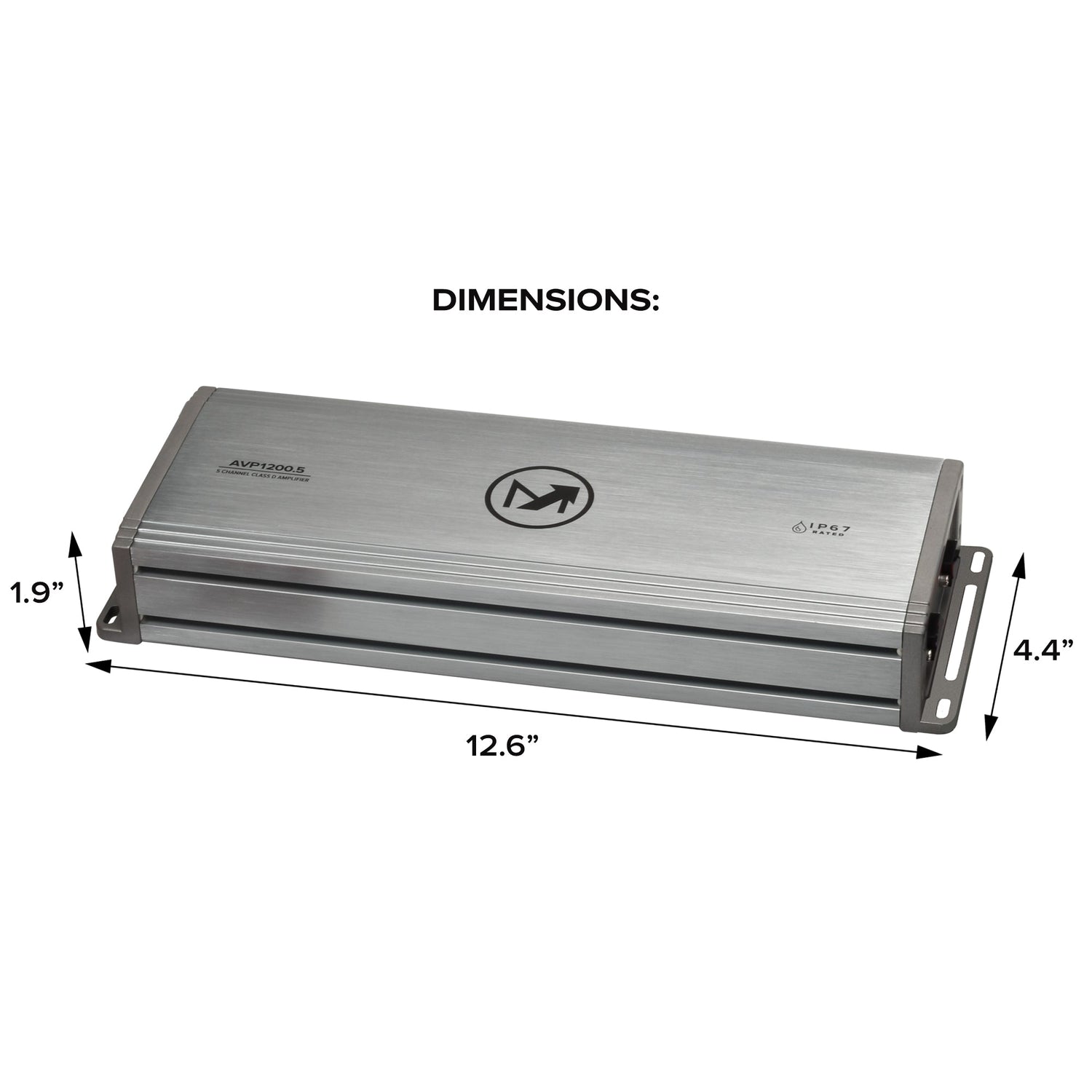

12.6 x 4.4 x 1.9 inches
