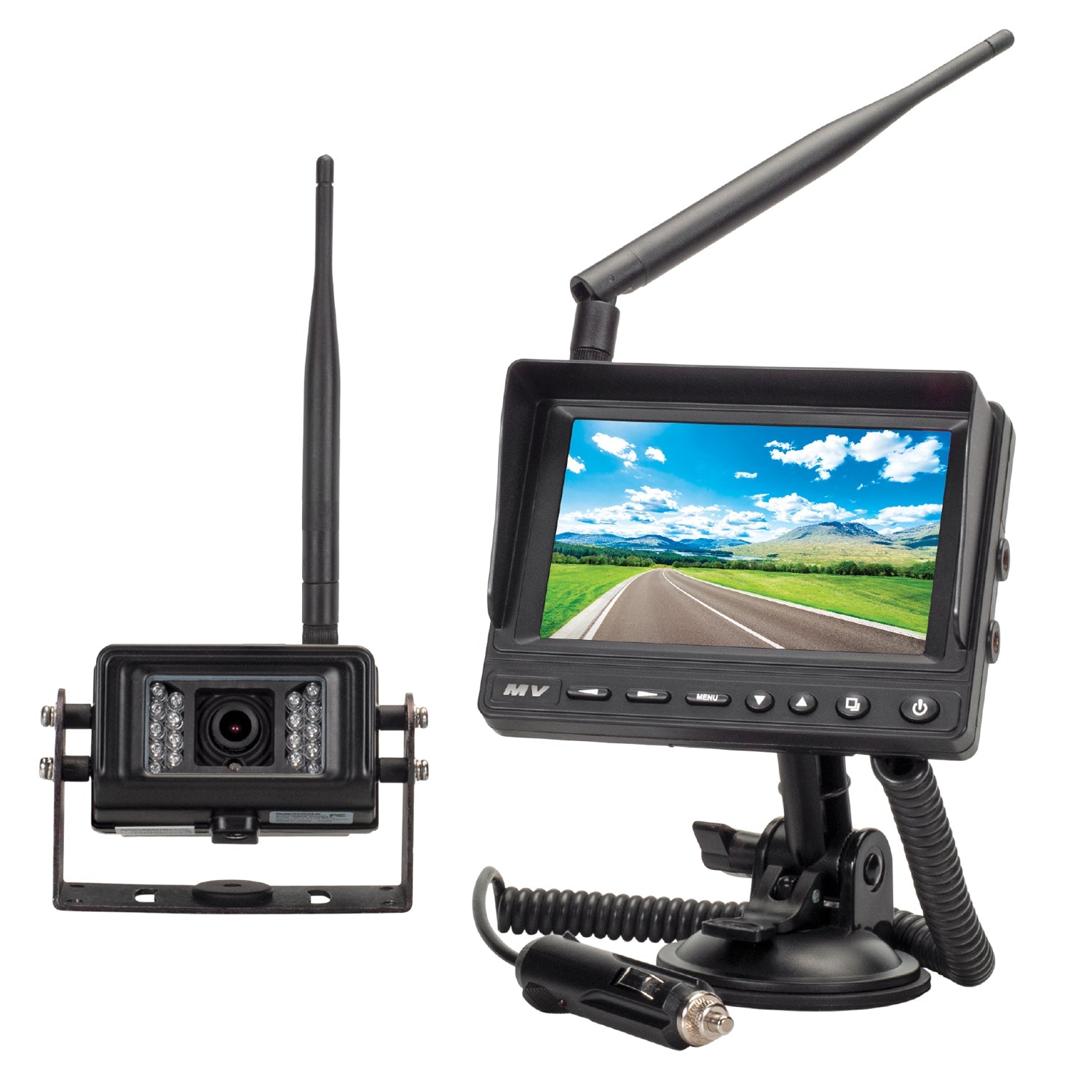

Install the MV-BC1 to monitor your vehicle in tow, assist you while backing up or to work as a rearview mirror providing an extra level of security and confidence.
The MV-BC1 is designed to be an easy install either from scratch (when no camera system or pre-wiring has been installed) or when your RV has shipped from the factory pre-wired specifically for this camera system.
Install the MV-BC1 to monitor your vehicle in tow, assist you while backing up or to work as a rearview mirror providing an extra level of security and confidence.

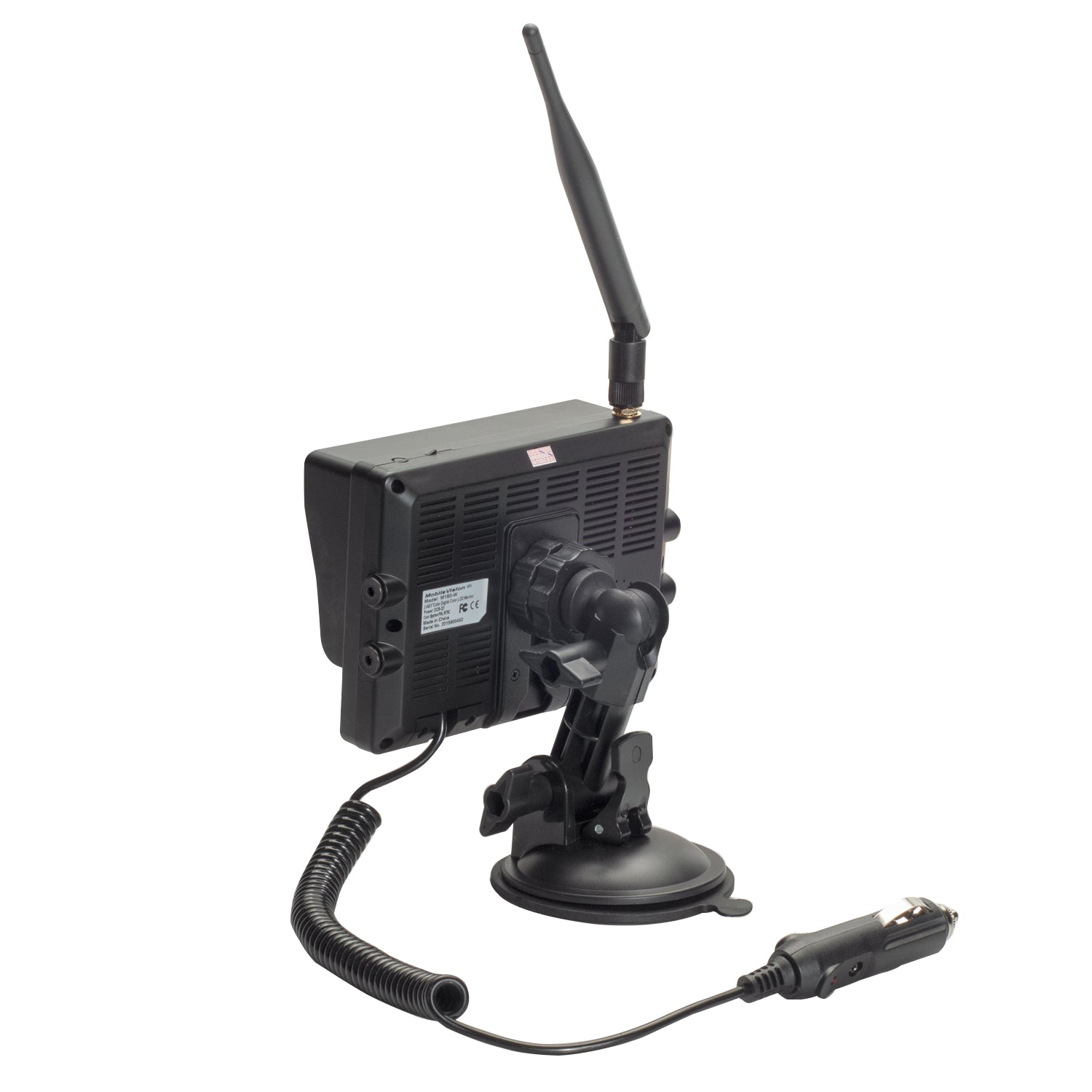

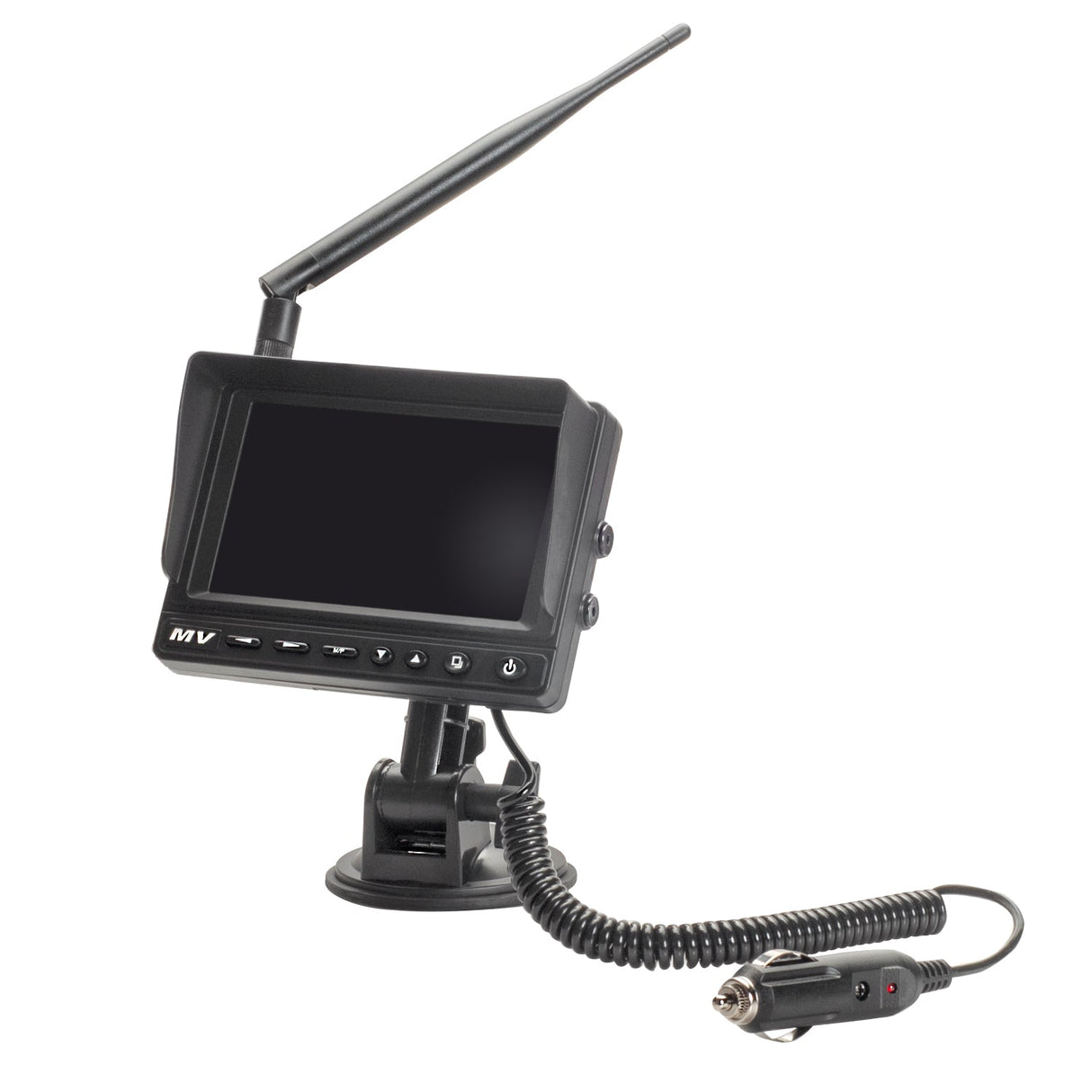

Monitor is a portable 5 Inch 2.4 GHz wireless HD color monitor high-definition LCD screen (960 x 480 px) that is powered by vehicle power adapter with coil cord supplied

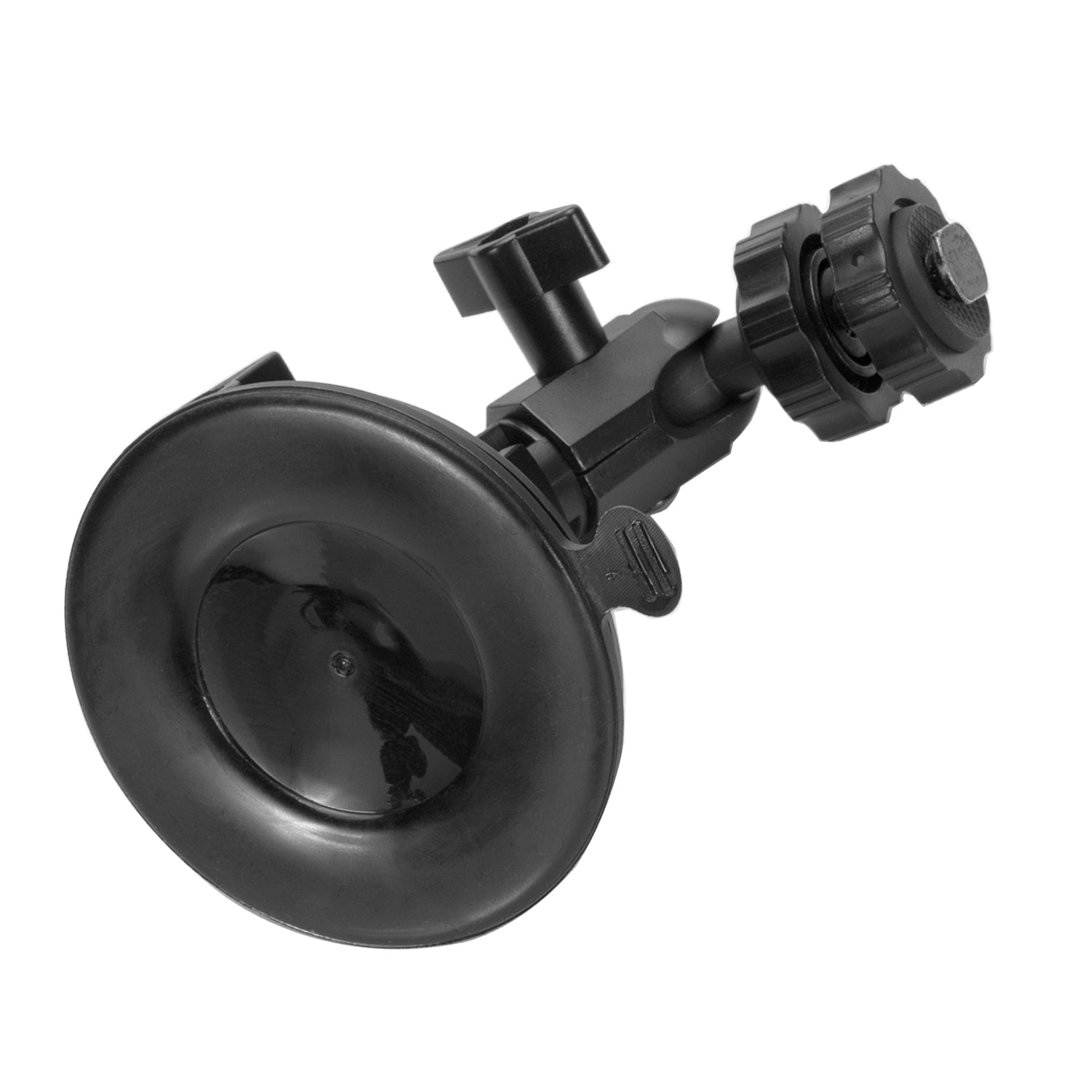

Adjustable suction cup pedestal mount included which is compatible on a window or dashboard

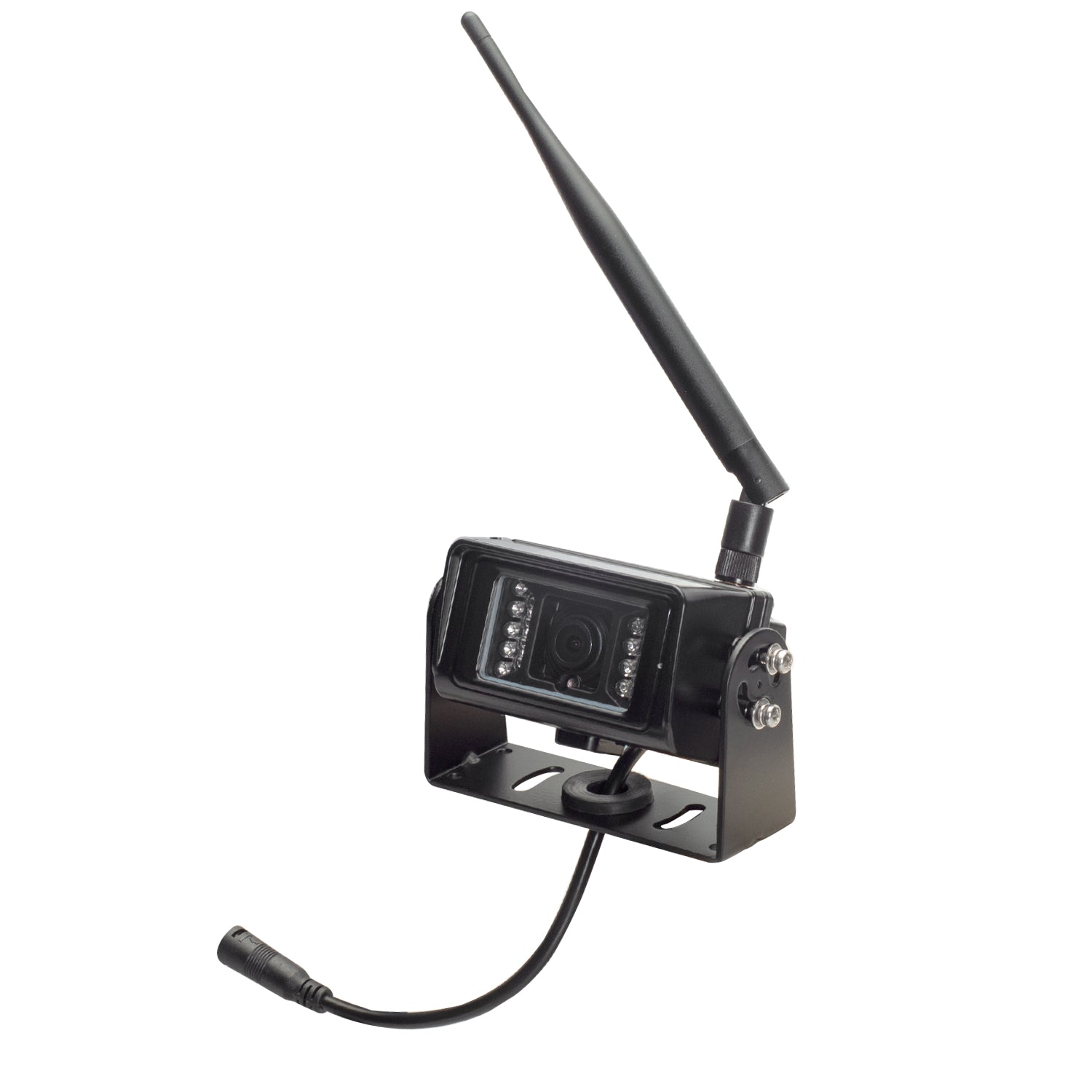

Camera Specifications
- 2.4 GHz wireless camera.
- Image Sensor: 1/3" Color CMOS
- Transmit Power: 18dBm
- Water-Resistant aluminum housing designed to IP69K standards.
- Designed to withstand random 10G vibration
- Photocell circuit automatically switches camera from daytime to nighttime mode.
- Operating Voltage: 10-32 VDC
Monitor Specifications
- 5", 2.4 GHz wireless HD color monitor.
- High temp ABS Monitor casing
- High-definition LCD screen (960 x 480 px).
- Wireless reception range of 100 meters (unobstructed).
- On screen display (OSD) menu allows user to set each camera's screen position, flip mode.
- Distance reference grid lines visible during reverse mode.
- Supports (2) cameras that can be displayed in single or split screen mode view (2nd camera not supplied).
- Adjustable suction cup pedestal mount included (window or dashboard compatible).
- Vehicle power adapter with coil cord supplied
- Operating voltage 8-32 VDC (reverse polarity protected).
Shipping | This item ships to |
Description
Install the MV-BC1 to monitor your vehicle in tow, assist you while backing up or to work as a rearview mirror providing an extra level of security and confidence.
The MV-BC1 is designed to be an easy install either from scratch (when no camera system or pre-wiring has been installed) or when your RV has shipped from the factory pre-wired specifically for this camera system.
Install the MV-BC1 to monitor your vehicle in tow, assist you while backing up or to work as a rearview mirror providing an extra level of security and confidence.
Monitor is a portable 5 Inch 2.4 GHz wireless HD color monitor high-definition LCD screen (960 x 480 px) that is powered by vehicle power adapter with coil cord supplied
Adjustable suction cup pedestal mount included which is compatible on a window or dashboard
Camera Specifications
- 2.4 GHz wireless camera.
- Image Sensor: 1/3" Color CMOS
- Transmit Power: 18dBm
- Water-Resistant aluminum housing designed to IP69K standards.
- Designed to withstand random 10G vibration
- Photocell circuit automatically switches camera from daytime to nighttime mode.
- Operating Voltage: 10-32 VDC
Monitor Specifications
- 5", 2.4 GHz wireless HD color monitor.
- High temp ABS Monitor casing
- High-definition LCD screen (960 x 480 px).
- Wireless reception range of 100 meters (unobstructed).
- On screen display (OSD) menu allows user to set each camera's screen position, flip mode.
- Distance reference grid lines visible during reverse mode.
- Supports (2) cameras that can be displayed in single or split screen mode view (2nd camera not supplied).
- Adjustable suction cup pedestal mount included (window or dashboard compatible).
- Vehicle power adapter with coil cord supplied
- Operating voltage 8-32 VDC (reverse polarity protected).
